How EnviroForensics Transformed a Brownfields Site into Their HQ

Metropolitan cities across America have experienced a renaissance over the past 15 to 20 years with new construction and development of Brownfields, and nowhere is this more prevalent than in the City of Indianapolis. Laid out in a grid, Indianapolis is partitioned into sections and intersected by freeways like spokes on a wheel — creating the “Crossroads of America.”

Over the years, patches of each quadrant have seen a slow, deliberate wave of redevelopment and revitalization wash over it. Factories have been replaced with luxury apartments and hotels, warehouses have been transformed into office buildings and craft breweries and old garages are getting second lives as art galleries, restaurants and grocery stores. These buildings are a natural fit for adaptive reuse with their large footprints and timeless architectural features and their redevelopment brings commerce and excitement to distressed areas. The biggest hurdle standing in the way of most of these revitalization efforts is potential environmental hazards left behind from years of industrial operation. We manage environmental cleanups to revitalize these properties all the time. It’s what we do for our clients every day. But, in this particular case, it’s what we did for ourselves and for the surrounding North Meridian Neighborhood in Indianapolis.

North Meridian Neighborhood Map
The North Meridian Neighborhood starts a block north of I-65 and runs south to New York Street, just two blocks north of Monument Circle. Courtesy: Downtown Indy.


Brownfields Site History: An Old Transmissions Garage

The 825 N. Capitol building operated as a transmission and automotive repair shop for decades and it sits on a stretch of Capitol Avenue just a few blocks north of the Indiana Statehouse, and right across the street from the famous Litho Press Building, now a luxury apartment complex. We originally purchased the building to store our equipment and company trucks. In a few short months, we found ourselves needing more space for our employees and we decided to use the space to build a new corporate headquarters.

825 N Capitol Building as a Brownfields site in 2015
825 N. Capitol Building in the fall of 2015.

The unassuming cinder-block structure with a limestone façade was first constructed in the 1930s and because it operated as an auto repair shop, there were unexpected spills and releases of oils and solvents that found their way into the soil and groundwater.  In addition to specific source contamination, groundwater beneath the building was also impacted from an unknown upgradient source.


Seeing the Brownfields Site Potential for Redevelopment

In 2000, EnviroForensics opened its Indianapolis office with three people in the old Stutz Auto Building, which is the “original” Indianapolis Brownfield Redevelopment, made up of nearly 100 offices and art studios of various size and configuration. By 2010, the office grew in size and was relocated to another old warehouse at 602 N. Capitol, above an active dry cleaner. As the city downtown grew and parking became more scarce, management found an old automotive repair company at 825 N. Capitol Ave. to store its trucks and equipment. By 2016, EnviroForensics was bursting at the seams with staff jammed in the main office and several satellite offices located in nearby buildings. By this time, EnviroForensics had grown to over 60 people and it was pretty clear that they needed to consolidate the team and find a new office space. After assessing the financial implications of renting more office space and committing to a new lease, it became clear that the old automotive repair building could be remediated and refurbished as the corporate headquarters.

“We wanted to make a statement with our headquarters about conservation, reuse and giving back to the community. Not only did we want to create a great environment for our team to work in, we wanted to reuse a structure that had once been a thriving part of the local economy and assist the neighborhood in maintaining its industrial legacy and heritage.”


Rising to the Redevelopment Challenge

The 825 N. Capitol Avenue property needed serious updates. Not only was the building divided into separate structures, old and in disrepair, but in order to get financing from the bank for the construction build out the soil and groundwater quality beneath the building needed to be assessed and remediated and the employees occupying the new building needed to be protected from potentially harmful vapors emanating from the soil and groundwater beneath the building. From a construction standpoint, the property had many issues, which included:

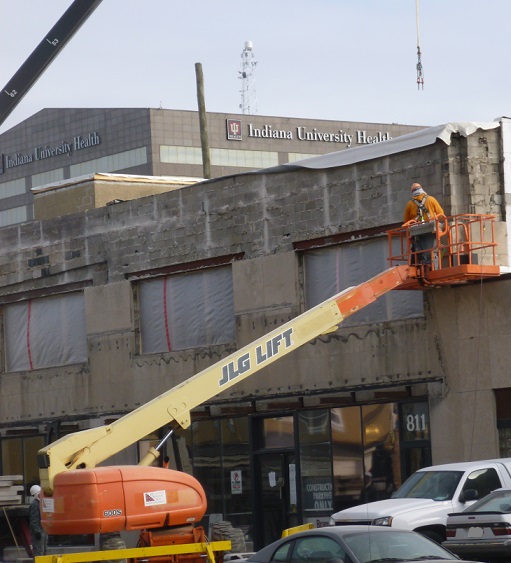

Construction on front of 825 N. Capitol Building
The front facade’s tenuous connection to the rest of the structure.
wires and grout on front of building
Eroding wires and weathered grout were the only things holding the front of the building together.
Construction worker removing built-up gravel from roof
There were significant roof issues with the built-up tar and gravel that had been in place for decades.
cars and trucks parked in building
The building was still in a two-unit configuration from its days as a transmissions garage and a costume warehouse, and there wasn’t a safe way to travel between the two buildings without having to go outside.


Redeveloping Our Brownfields Site With Insurance Archeology

For us, dealing with the environmental issues was relatively painless, as we conducted the research of the historical operations and we were able to find the old Commercial General Liability (CGL) policies of the past owners and operators. Because the soil and groundwater was contaminated, the Indiana Department of Environmental Management demanded that the site be fully assessed and understood and that soil vapors be routed from beneath the subsurface concrete slab to the roof line, so they did not build up and create an indoor health hazard. In tendering the insurance carriers of the former owners and operators, we were able to get the old insurance carriers to pay for all of the environmental and legal costs required to get the building squared away from an environmental standard and satisfy the banks concerns regarding the soil and groundwater contamination.

To learn more about how CGL policies can work for you, read How Does It Work? Insurance Archeology and CGL Policies.

While remediation efforts were ongoing, we contracted Brandt Construction and Mawr Architecture and Interior Design to start work on shoring up the structural integrity of the building, and designing the eventual floor plan, so we could push the project forward as quickly as possible. The Brandt crew turned the two buildings into one by:

Pre-construction stairway
The adjoining walls were torn down in four spots to connect the two buildings.
Worker installing supportive archway
Once the walls were opened up, Brandt Construction secured them with load bearing archways.

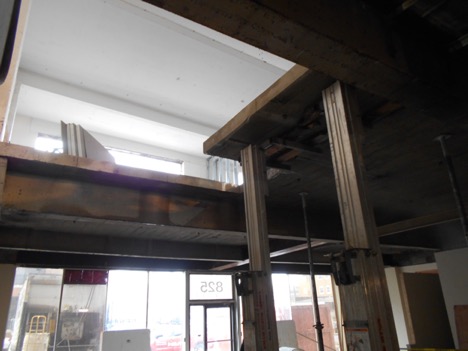

portion of second floor removed for stairway
Brandt Construction also connected the first and second floors with a custom-built stairway.
construction worker installing window in community room
And they erected a new facade along a portion of the roof to create what is now our open common area for company-wide meetings and gatherings.
Piping for mitigation system
To ensure the safety of the indoor air for our team, Vapor Protection Services (VPS) installed a passive mitigation system.

With the electric and water utilities installed, the skeletons of office walls put up, and the windows replaced, the bones of our building were complete.


Bringing Further Revitalization to the North Meridian Neighborhood

The new and improved EnviroForensics building is now a two story, 23,000 square foot office and community space with beautiful exposed brick walls, stylish edison bulb light fixtures, and plate glass room dividers.

825 N. Capitol building after renovation
The new and improved 825 N. Capitol Building where EnviroForensics’ 75 team members come to work every day.

The hallways are a celebration of Indiana artists with work from 13 Hoosier painters and photographers. We’re proud to have six different collaborative workspaces, including three conference rooms, and two dedicated kitchen areas for EnviroForensics’ 75 team members to both work and enjoy each other’s company.

front foyer and conference room in EnviroForensics headquarters
One of the first things you see as you enter is the Founder’s Room. One of six open collaborative workspaces in the EnviroForensics building. Courtesy: MAWR Architecture + Interior Design
Renovated kitchen and common area
The Community Room, where EnviroForensics team members gather for full staff meetings, meals, and other office-related fun. In its previous life, this room was part of the roof. Courtesy: MAWR Architecture + Interior Design
renovated archway and stairway
The two buildings are connected with four archways like this one (pictured left). Also pictured is the custom-built staircase (right), which required a portion of the floor to be removed and reinforced in order to install. Courtesy: MAWR Architecture + Interior Design
renovated front kitchen area
The Front Lounge is another multifunctional space for team members to collaborate on projects or meet for lunch. It features a number of works by Clotilde Embry Funk, a Hoosier artist who was an illustrator at the New York Times, and was one of the first females to work at the storied newspaper. Courtesy: MAWR Architecture + Interior Design

The North Meridian Neighborhood was slowly on the rise before we moved to our renovated office in August of 2016. The popular Indianapolis Cultural Trail is headquartered here, the popular Indianapolis Canal Walk is available for lunch time strolls, employees can grab a drink after work at Brew Link Brewing Company, luxury apartments are right across the street, and Myriad Fitness, a crossfit gym, is within a short walk. And, coming in late 2018, there will be an added infusion of culture with the renowned Phoenix Theater moving its operations to a new 20,000 square feet, state-of-the-art facility nestled at the corner of Illinois street and the Cultural Trail. We’re excited about the future, and hope that our contribution of keeping high-paying jobs in the area helps spur the continual redevelopment of downtown Indianapolis.
